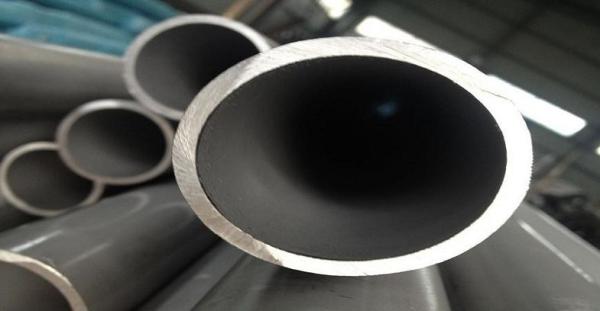

    800G Mirror Finish Oval Stainless Steel Tube ASTM A559jiejw4 , A249 201/ 202 /304 / 316

    Ask Lasest Price
    Brand Name : Hainer Steel
    Model Number : 304/304L,316L,310S, 904L etc.
    Certification : ISO9001,SGS,CQC,BV, TUV etc.
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 1000Tons/Month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    800G Mirror Finish Oval Stainless Steel Tube ASTM A559jiejw4 , A249 201/ 202 /304 / 316

    800G Mirror Finish Oval Stainless Steel Tube ASTM A554, A249 201/ 202 /304 / 316


    QuickDetail:


    All oval pipe ( seamless and welded ),be made by round steel pipe,the manufacturing process of round steel pipe according to ASTM A312/A312 - 04 Standard Specifiction


    Minoutsiderdiameter

    6mm

    Maxoutsiderdiameter

    169mm

    Wallthickness

    0.3mmto3.0mm

    SurfaceFinished

    2B,APfinish,No.1finishetc.

    Type

    EllipticalPipe,SquareTube,RectangularTube


    Description:


    We can supply type of pipe: Seamless Oval Pipe, Welded Steel Pipe; Seamless Square Pipe,Welded Square Pipe; Seamless Elliptical Pipe,Welded Elliptical Pipe;


    Items

    Square pipes, round tubes, oval pipes, special shaped pipes, empaistic pipes, fittings

    Standard

    ASTM A554, A249, A269 and A270

    Material Grade

    201: Ni 0.8%~1%

    202: Ni 3.5%~4.5%

    304: Ni 8%, Cr 18%

    316: Ni 10%, Cr 18%

    316L: Ni10%~14%

    430: Cr16%~18%

    Outer Diameter

    6mm--169mm

    Thickness

    0.3mm - 3.0mm

    Length

    6m or as customers' request


    Tolerance

    a) Outer Diameter: +/- 0.2mm

    b) Thickness: +/- 0.02mm

    c) Length: +/- 5mm

    Surface

    180G, 320G, 400G Satin / Hairline

    400G, 500G, 600G or 800G Mirror finish

    Application

    Sanitary, food industry, Decoration, construction,

    upholstery, industry instrument

    Test

    Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT


    Chemical Composition of Material

    Material


    Composition

    201

    202

    304

    316

    430

    C

    ≤0.15

    ≤0.15

    ≤0.08

    ≤0.08

    ≤0.12

    Si

    ≤1.00

    ≤1.00

    ≤1.00

    ≤1.00

    ≤1.00

    Mn

    5.5-7.5

    7.5-10

    ≤2.00

    ≤2.00

    ≤1.00

    P

    ≤0.06

    ≤0.06

    ≤0.045

    ≤0.045

    ≤0.040

    S

    ≤0.03

    ≤0.03

    ≤0.030

    ≤0.030

    ≤0.030

    Cr

    16-18

    17-19

    18-20

    16-18

    16-18

    N

    3.5-5.5

    4-6

    8-10.5

    10-14


    Mo




    2.0-3.0



    Mechanical Property

    Material Item

    201

    202

    304

    316

    Tensile Strength

    ≥535

    ≥520

    ≥520

    ≥520

    Yield Strength

    ≥245

    ≥205

    ≥205

    ≥205

    Extension

    ≥30%

    ≥30%

    ≥35%

    ≥35%

    Hardness (HV)

    <253

    <253

    <200

    <200


    1. Marking:Registeredlogo,HeatNumber,SteelGrade,Standard,Size
    2. Packing:Plasticbaginbundle
    3. H.SCode:7304.4190 ( For seamless Oval | Elliptical | Square | Rectangular Pipe )
    4. OrderingInformation:Itshallbetheresponsibilityofthepurchasertospecifyall requirementsthatarenecessaryforproductsunderthisspecification.Suchrequirementstobe
    5. consideredincluded,butarenotlimitedto,thefollowing:

    1).Quantity(feet,meters,ornumberoflengths)

    2).Nameofmaterial(seamlesstubes)

    3).Size(Table1)

    4).Length(specificorrandom)

    5).Condition(hotfinishedorcoldfinished)


    TABLE1SizesforEllipticalOrSquare&RectangularTube


    Wall

    Thickness


    Size

    1.5 mm

    2.0 mm

    3.0 mm

    3.5 mm

    4.0 mm

    4.5 mm

    5.0

    mm

    6.0 mm

    8.0 mm

    9.0 mm

    10.0 mm

    12.0 mm

    10x10mm

    10x20mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    20x20mm

    20x40mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    40x40mm

    40x80mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    50x50mm

    50x100mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    60x60mm

    60x120mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    80x80mm

    80x160mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    100x100mm

    100x150mm

    100x200mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    150x150mm

    150x200mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    200x200mm

    200x250mm

    200x300mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    300x300mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×
